A Simple, Fast Way To Measure Coagulant Residue In Treated Water

The Problem with Residual Coagulants

Why Poly-DADMAC Needs to Be Monitored

PD is effective because of its strong positive charge, which neutralizes negatively charged particles in raw water, causing them to clump together and settle out. This process removes dirt, bacteria, and organic matter. However, when PD doses aren't precisely controlled, leftover polymer molecules remain dissolved in the water.

These residual polymers are problematic for two main reasons:

1. Membrane Fouling: In advanced treatment plants, water often passes through microfiltration, nanofiltration, or reverse osmosis membranes. Residual PD can adsorb onto these membranes, clogging their pores. This reduces water flow, increases energy consumption, and requires more frequent (and expensive) membrane cleaning or replacement .
2. Formation of Harmful By-products: Perhaps more concerning is that residual PD can react with disinfectants like chlorine or ozone. These reactions can form N-nitrosamines, a group of chemicals that are classified as probable carcinogens .

Because of these risks, regulatory bodies in the U.S. and Europe have set the maximum allowable residual PD in drinking water at 50 µg/L .

Current Measurement Methods: Slow and Complicated

To control PD dosing, water plants need to measure residual levels quickly. However, until now, the available analytical methods have been less than ideal.

Techniques like chromatography, fluorescent tagging, and gel permeation chromatography can be accurate, but they often require expensive equipment, highly trained operators, and lengthy procedures . They are not well-suited for routine, real-time monitoring at a treatment facility.

Some colorimetric methods, which use dyes to create a measurable color change, have been tried before. But they often have detection limits that are far too high-two to three orders of magnitude above the required 50 µg/L-making them useless for regulatory compliance . A need remained for a method that is both sensitive enough and simple enough for everyday use.

A New, Sensitive Solution

The Fast Green Dye Method

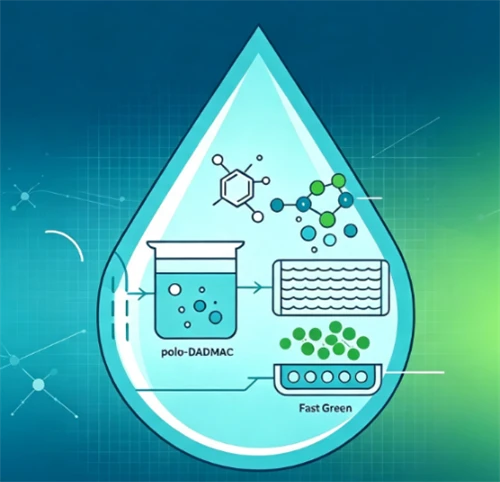

A team of researchers has developed a method that addresses these shortcomings. The research introduces a colorimetric quantification technique based on the complexation of PD with a food dye called Fast Green (FG) .

Here's the core principle in simple terms: Fast Green is an anionic dye, meaning it has a negative charge. When added to a water sample containing positively charged PD, the two molecules bind together, forming an insoluble complex. The more PD in the water, the more dye is "used up" in this reaction.

The researchers then measure the remaining, unbound dye using a UV-Vis spectrophotometer. As the PD concentration increases, the amount of free dye decreases, and the measured absorbance drops. This creates a clear, inverse correlation that can be used to quantify the PD level .

Highly Sensitive and Cost-Effective

This new method demonstrates exceptional performance. It has a detection limit of just 3.22 µg/L, which is a full order of magnitude (ten times) lower than the regulatory limit of 50 µg/L . This means it can easily detect PD at levels well below what is considered safe, providing a significant margin of safety for operators.

The research validated the method over a wide range of PD concentrations-from low to high-showing excellent linear correlations with an R² value greater than 0.98 in most cases . It was also tested successfully with both pure analytical PD and commercial PD formulations, confirming its real-world applicability.

Practical Tests in Real-World Conditions

To prove the method works outside of a pristine lab setting, the researchers applied it to two challenging water types: water polluted with cyanobacteria (blue-green algae) and wastewater from a cowshed . Both are complex matrices that could potentially interfere with a measurement.

The results were very promising. The method successfully quantified residual PD in both sample types. It was even used to show that clay-PD nanocomposites, a new type of coagulant being developed, leave less residual PD in the treated water compared to conventional PD, likely because the excess polymer settles out with the clay particles . This demonstrates the method's value as a tool for developing and optimizing new treatment technologies.

Why This Matters

Key Benefits for Water Treatment Operators

This new colorimetric method offers a practical, powerful tool for water treatment plants:

• Fast and Simple: The procedure is straightforward and can be performed with basic lab equipment like a spectrophotometer, making it suitable for routine monitoring.
• Cost-Effective: Compared to complex chromatographic methods, this approach uses relatively inexpensive materials and has lower operational costs.
• Highly Sensitive: It provides accurate measurements at levels well below the required standard, ensuring safe water quality.
• Robust: It performed well in various water types, indicating it can be a reliable method in different treatment scenarios.

By enabling precise monitoring of PD residuals, plants can optimize their coagulant dosing. This minimizes the risks of membrane fouling and harmful by-product formation, all while ensuring regulatory compliance and protecting public health.
